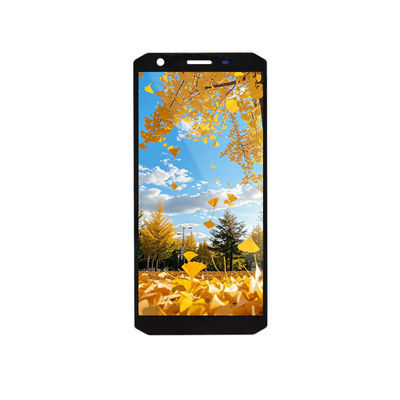

5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface

Наименование марки:	GENYU
МОК:	100
цена:	$10-15

Подробная информация

Описание продукта

Подробная информация

Place of Origin:

Guangdong, China

Display Type:

TFT

Display Size:

5.45 INCH

Backlight Type:

LED

Resolution:

720*1440

Operating Temperature:

-20~70℃

Mounting Type:

PCB

Screen Size:

5.45"

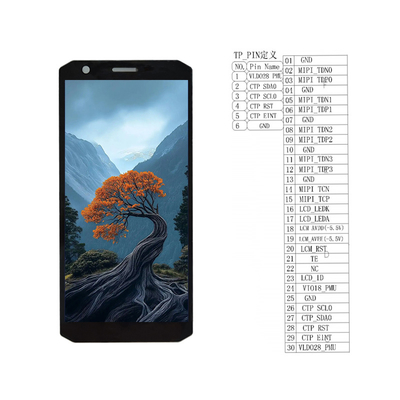

Communication Interface:

MIPI interface/30 pin

Driver IC:

HX8394F

LCD Type:

TFT Transmissive

Number of Dots:

720x (RGB) x 1440

Pixel Arrangement:

RGB Vertical Stripe

Active Area:

61.88(H) x 123.77(V)

Viewing Direction:

ALL

Module Size:

64.22(H) × 130.48 (H) *1.62

Выделить:

5.45 inch TFT LCD display module

MIPI interface LCD display panel

720x1440 resolution TFT LCD module

Описание продукта

720×1440 IPS LCD Display Module

5.5 Inch All Viewing Angle MIPI Interface TFT LCD Display with 720×1440 Resolution

Product Specifications

Attribute	Value
Type	TFT
Display Size	5.45 INCH
Supplier Type	OEM/ODM
Backlight Type	LED
Resolution	720×1440
Operating Temperature	-20~70℃
Display Type	TFT
Mounting Type	PCB
Screen Size	5.45"
Communication Interface	MIPI interface/30 pin
Driver IC	HX8394F

Technical Details

LCD Type	TFT Transmissive
Number of Dots	720x (RGB) x 1440
Pixel Arrangement	RGB Vertical Stripe

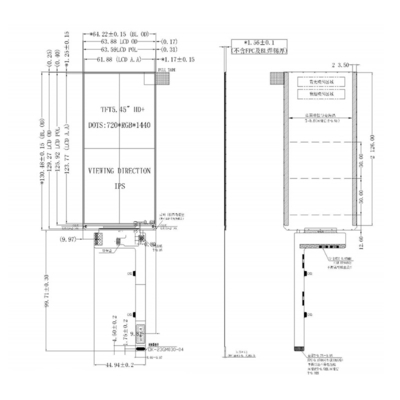

Active Area	61.88(H) x 123.77(V)
Viewing Direction	ALL
Module Size	64.22(H) × 130.48 (H) *1.62
Back Light	White LED
System Interface	MIPI interface/30 pin

About Genyu Optical

Established in 2003, Shen Zhen Genyu Optical Co., Ltd specializes in R&D, production and sales of LCD displays, OLED and TFT LCD modules. We offer professional customized LCD screens including TN, HTN, STN, FSTN, VA (BTN), COG and COB LCD modules.

Our 30,000 square meter facility employs 1,000 staff including 36 technicians, 16 developers and 60 QC personnel. Our core team includes LCD experts, process engineers, R&D engineers, and backlight specialists.

We design, develop and produce customized LCD, LCM, backlight, and FPC products according to customer requirements. Our annual production capacity includes 100 million LCD screens, 30 million LCMs and 40 million backlights.

Manufacturing Capabilities

Our 6,000 square meter dust-free workshop maintains a 100k cleanliness level. The facility features:

Fully enclosed material transfer windows
Air shower systems to eliminate contaminants
Strict quality control processes

Product Range

We offer comprehensive display solutions including:

1. Custom Segment LCD Displays

We've produced tens of thousands of segment LCDs in TN, STN, HTN, FSTN, and VA/BTN technologies.

2. Dot Matrix Graphic LCD Displays

Available in various configurations including 96x16, 128x64, 160x160 up to 320x240 resolutions.

3. AMOLED Displays

Mini size OLED displays ranging from 0.42" to 2.4".

4. TFT LCD Displays

HD full color TFT displays from 0.91" to 10.1", available in standard sizes or customized solutions.

Applications: Wearable devices, medical equipment, financial terminals, industrial controls, new energy systems, communication devices, and instrumentation.

Quality Assurance

All products undergo strict inspection before packaging. COG LCD products are shipped in custom plastic containers for protection during transit.

Shipping Information

Standard carton size: 398 × 331 × 430 mm (approx. 17kg)

Processing time: 3 working days after payment
Express shipping (DHL/UPS/FedEx/TNT): 2-5 working days
EMS: 7-10 working days
Standard shipping: 10-30 working days

Contact Information

Erica Tan
Tel: 0755-27856531
Mobile: +86-15919421997
WeChat: 15919421997
Skype: live:gyerica_1
Website: www.genyulcm.com
Email: Erica@szgenyu.com

We Offer:

Acceptance of small orders
High quality at competitive prices
Guaranteed production lead times
Free technical support
Included spares with each order
